In tough industrial environments, protecting production equipment is non-negotiable. While hard chrome plating has long been the go-to solution. There is an alternative that can be used to extend the life of your product by utilizing spray-on carbide coatings. These advanced coatings deliver superior durability, enhanced performance, and significant cost savings—especially for industrial roll reconditioning and other high-impact applications. It’s time to upgrade your protection strategy and unlock next-level efficiency.

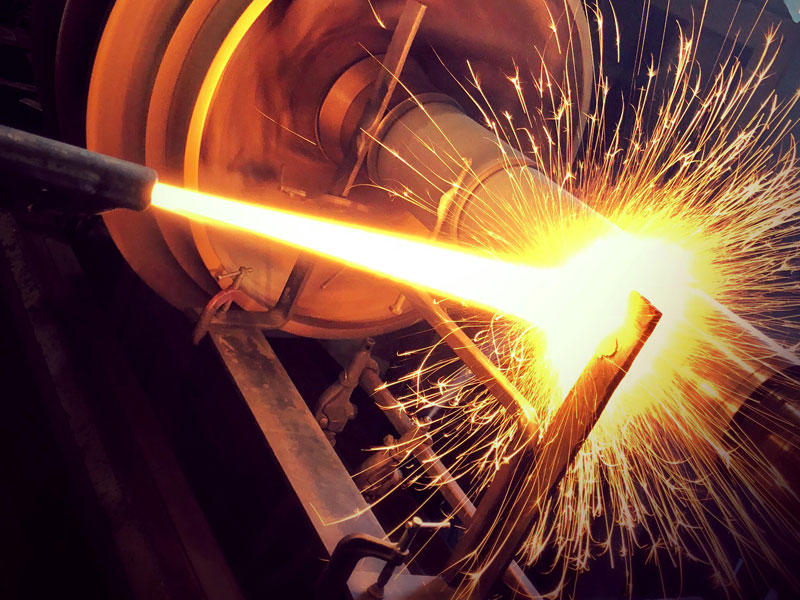

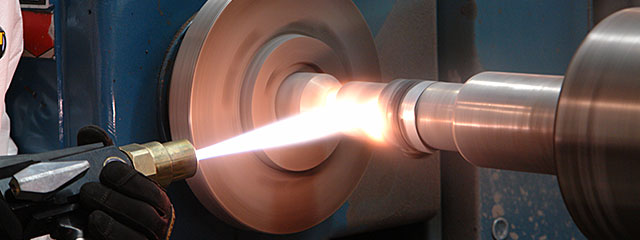

Spray-on carbide coating is exactly what it sounds like—a thin layer of carbide material applied to steel components using a high-pressure spray nozzle.
Unlike paint, this coating bonds with the steel itself. The high-velocity spray embeds the carbide into the surface, making it a durable part of the component.
The coating is built up in several thin layers, each just a few thousandths of an inch thick. This precise application is important—too much coating can make it brittle and prone to flaking. The ideal total thickness is around 7 to 8 thousandths, much thinner than traditional hard chrome coatings, which are typically 20 to 30 thousandths thick.
Fluted Rolls:
One of the most significant advantages becomes apparent with fluted rolls–specialized production rolls with grooves cut into their surface. These rolls feature dozens of precisely machined grooves that are needed to maintain their exact square profile for optimal performance.
When you chrome plate these grooves, you get a radius effect at the bottom corners, similar to the meniscus you see when water reaches the rim of a glass. Chrome tends to “wash away” those sharp, machine corners, which diminishes the roll’s effectiveness.
Spray-on carbide, however, follows the exact profile of the machined surface without distorting the shape. You can spray and get down into those square corners while maintaining the precise geometry that makes the roll function properly.
Coater Rolls:

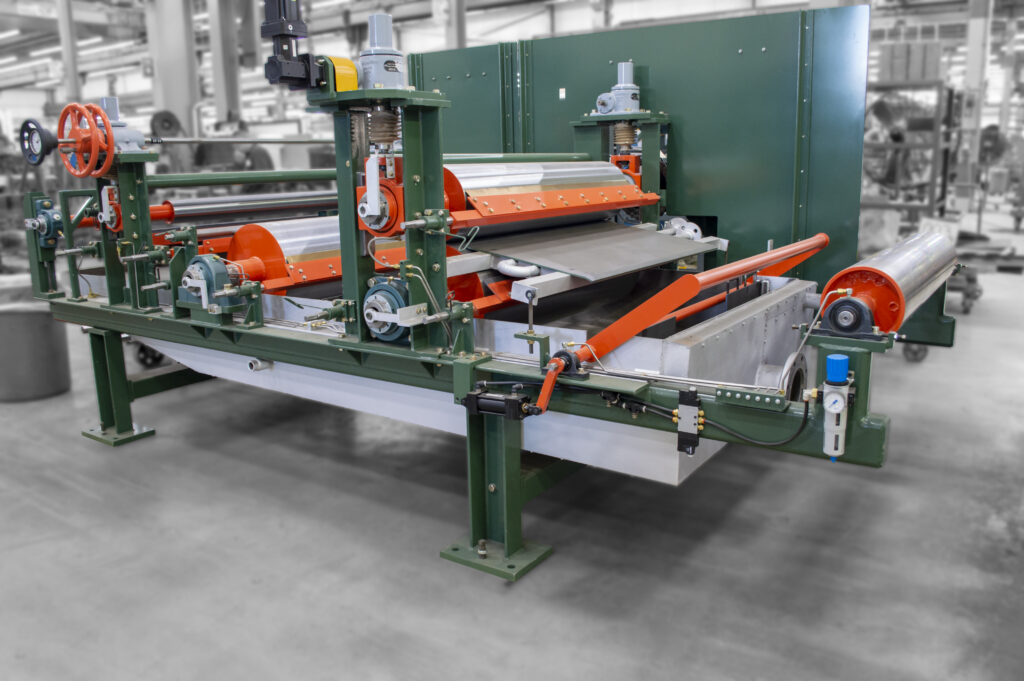

For coater rolls that require extremely flat surfaces and specific diameters across the entire face, spray-on carbide can be applied and then ground to exact specifications, similar to chrome but with superior wear characteristics.
General Production Rolls:
Any production roll that carries membrane or sheet material from one location to another, especially in environments where the roll surface experiences abrasive contact, can benefit from spray-on carbide coating.
Components with spray-on carbide coatings can last two to three times longer than those with hard chrome surfaces when properly maintained. This extended lifespan translates directly into reduced replacement frequency and increased production uptime–both significant cost savings for manufacturers seeking an effective alternative to chrome plating.
Chrome plating needs extra steps to get that smooth, shiny look. Right out of the tank, chrome has a dull, rough finish called a “tank finish.” To get the mirror-like surface people expect, manufacturers usually apply extra chrome and then grind it down to the desired smoothness.
Spray-on carbide, on the other hand, keeps the original surface texture and often doesn’t need grinding—saving time and reducing costs.
Because spray-on carbide applications often don’t require the grinding and polishing steps necessary with chrome plating, lead times can be significantly shorter. This faster turnaround can be crucial for maintaining production schedules.
Hard chrome plating facilities are tightly regulated by the EPA due to the risk of heavy metals contaminating water sources. Managing these environmental requirements can be complex. In contrast, spray-on carbide coatings seem to involve fewer regulatory challenges, though more research is needed to fully understand their environmental impact.
Upfront Investment
The initial cost of spray-on carbide can vary depending on the application. For components that don’t require grinding, the cost may be comparable to or even less than chrome plating. However, applications requiring precision grinding may have higher upfront costs.
Long-Term Value
The real value proposition emerges over time. The extended wear life means you’re not replacing components as frequently, which saves both material costs, and the production downtime associated with changeovers. When you factor in the increased production runtime, the total cost of ownership often favors spray-on carbide significantly.
Maximizing equipment efficiency across your entire production line is key to achieving optimal cost benefits. Our Cutter Training Program can help optimize performance beyond just coating solutions.
Reconditioning Capabilities
Like chrome plating, spray-on carbide components can be reconditioned multiple times. As long as you address wear before it reaches the base steel, components can be recoated numerous times, extending their useful life even further. This makes industrial roller reconditioning with carbide coatings a cost-effective long-term solution.
Not for Cutting Applications
Spray-on carbide is not suitable for cutting components. The cutting performance simply isn’t there when applied to steel knives. For cutting applications, solid carbide or tool steel knives remain the appropriate choice. This distinguishes spray-on carbide from coated carbide tools, which are specifically engineered for cutting operations with different material compositions and application methods.
For guidance on maintaining cutting cylinders and other cutting components, see our maintenance guide for cutting cylinders.
Handling Requirements
Spray-on carbide surfaces require more careful handling than chrome plating. The coating has a greater tendency to chip if not handled correctly. Using metal scrapers or tools to clean jams can cause chipping, whereas the same treatment might only cause minor scratching on chrome surfaces.
Application-Specific Solutions
Success with spray-on carbide depends heavily on proper application selection. Not every situation benefits from this coating–it’s particularly unsuitable for applications involving sliding contact across stationary surfaces, such as skid plates where material slides across the surface rather than rolling.
The choice between spray-on carbide coatings and traditional chrome plating isn’t a simple one—it demands a strategic evaluation of your operational needs, environmental conditions, and performance goals.
Spray-on carbide stands out for its exceptional wear resistance, cost efficiency, and reduced environmental footprint. However, the true value of any coating lies in selecting the right solution and applying it correctly.
For manufacturers aiming to extend component life, minimize downtime, and accelerate production timelines, spray-on carbide offers a compelling alternative to chrome plating. This advanced technology delivers reliable durability and maintains the high-performance standards required in demanding industrial environments.
Reichel & Drews brings decades of product knowledge and application expertise to spray-on carbide solutions. Our technical experts understand the nuances of when spray-on carbide excels versus when traditional chrome plating might still be the better choice. Contact us today to discuss your specific application needs and discover how spray-on carbide coatings could improve your production efficiency and reduce long-term costs.
Spray-On Carbide: A Smarter Chrome Alternative In tough industrial environments, protecting production equipment is non-negotiable. While hard chrome plating has long been the go-to solution. There is an alternative that can be used to extend the life of your product by utilizing spray-on carbide coatings. These advanced coatings deliver superior

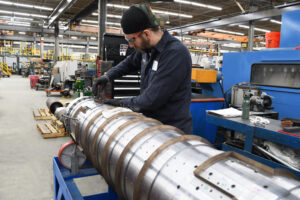

Best Practices for Maintaining Laminate Cutting Cylinders in Roofing Manufacturing Maximizing Uptime: The Critical Role of Cutting System Maintenance in Roofing Manufacturing In the high-demand world of laminate shingle production, the reliability of your cutting systems—specifically Pattern Cutters and Cut-To-Length (CTL) Cutters—can make or break operational efficiency. These systems are

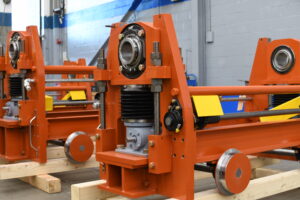

Minimizing Downtime With Fast Ship Parts: ROOFING EQUIPMENT PRODUCTION PARTS Minimize Downtime. Maximize Productivity. When equipment fails unexpectedly, every minute counts–and so does every dollar that your plant spends when it is not running at full capacity. As such, it’s crucial for roofing manufacturers to minimize downtime, and Reichel &
