If it feels like you’re constantly chasing adjustments—correcting tracking, tweaking tension, dialing in cutting—only to see the same issues resurface somewhere else in the process, you’re not alone.
In many cases, the problem doesn’t actually originate where it shows up. It starts earlier in the process, often with changes in roll condition that begin influencing how material behaves before it ever reaches cutting or stacking.

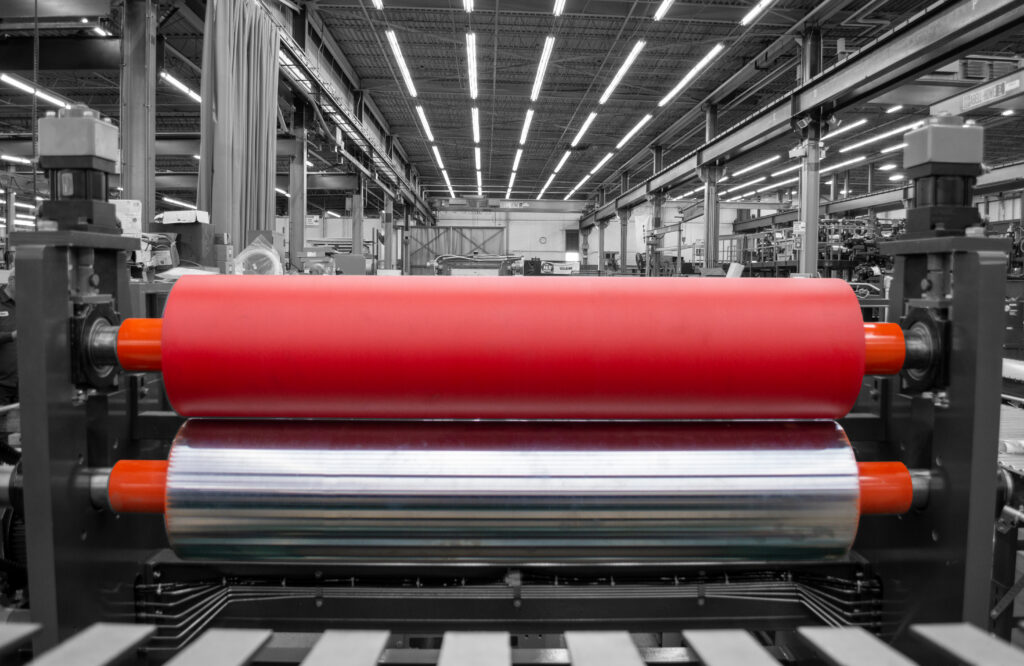

Rolls play a critical role in how material moves through the line. The driven rolls influence tension, concentricity, alignment and tracking. They determine how the sheet is presented into each stage of the process. In doing so, they establish the conditions that downstream equipment depends on.
When rolls are performing as intended, the process feels stable because material tracks consistently, tension stays within range, and downstream operations respond predictably. Over time, that stability can begin to shift as roll condition changes.
Like any component in continuous production, rolls wear.
As that happens, surface condition changes, geometry can shift slightly, and alignment gradually moves out of its original range. These changes rarely cause immediate failure, which is why they often go unnoticed in the early stages.
Instead, the effect tends to appear in other parts of the process:
Because the symptoms show up elsewhere, the connection to the roll itself isn’t always obvious.
Operators compensate by making adjustments across the line to maintain production, but the effort required to keep things stable gradually increases.
If you’re not sure why adjustments are increasing, a Reichel & Drews line audit can help identify whether roll condition is driving instability upstream.
Because the symptoms show up downstream, roll condition is not always the first area evaluated.
A tracking issue may be corrected at the web guide or by moving rolls. A tension fluctuation may be temporality addressed by modifying control set points or load cell ranges. Each adjustment might temporarily resolve a local symptom, but it does not address the upstream or possibly downstream condition that created it.
As those adjustments accumulate, the process becomes more reactive and less controlled because the rolls are no longer producing the same material position and tension conditions the system was designed around.
The impact of roll condition is not limited to product quality. It shows up in how much effort it takes to keep the line running.
As rolls begin to influence material handling differently, operators and maintenance spend more time adjusting for variation that did not previously exist. Over the course of a shift, even a small increase in adjustment frequency can translate into hours of additional operator, maintenance, and possibly down time each week.
That cost is rarely tied directly to the roll, but it is a direct result of how the rolls are affecting system behavior.
Evaluating roll condition before variability begins to affect production allows for a more controlled approach.
Replacing rolls before they begin influencing downstream performance helps maintain consistent material handling, reduces adjustment, and avoids the gradual loss of stability that can develop over time.
Note that it is also necessary to speed match driven rolls when replaced and periodically due to roll size reduction to maintain proper tension control.
Appropriately replacing and speed matching your rolls allows you to maintain how the system behaves, rather than reacting to how it changes.
When rolls reach the point where they need to be replaced, the decision is often treated as straightforward. Identify the part and get it back in service as quickly as possible.
In some cases, that leads to locally sourced replacements intended to solve an immediate need.
The challenge is that rolls do not function as standalone components. The goal shouldn’t be just to restore the component. The goal should be to restore the conditions the roll creates in the process.
For OEM-engineered equipment, rolls are designed with specific relationships to tension control, material handling, and downstream processes. Maintaining those relationships is what keeps the system predictable over time.
Roll diameter, surface finish, and alignment all directly affect how material behaves in normal production. Even small variations can change roll wear and tension response, influence tracking, and alter how consistently the sheet transitions between stages.
Those differences are not always visible at installation. They appear over time as changes in how the line responds, including increased adjustment, added variability, and a process that becomes harder to keep stable.

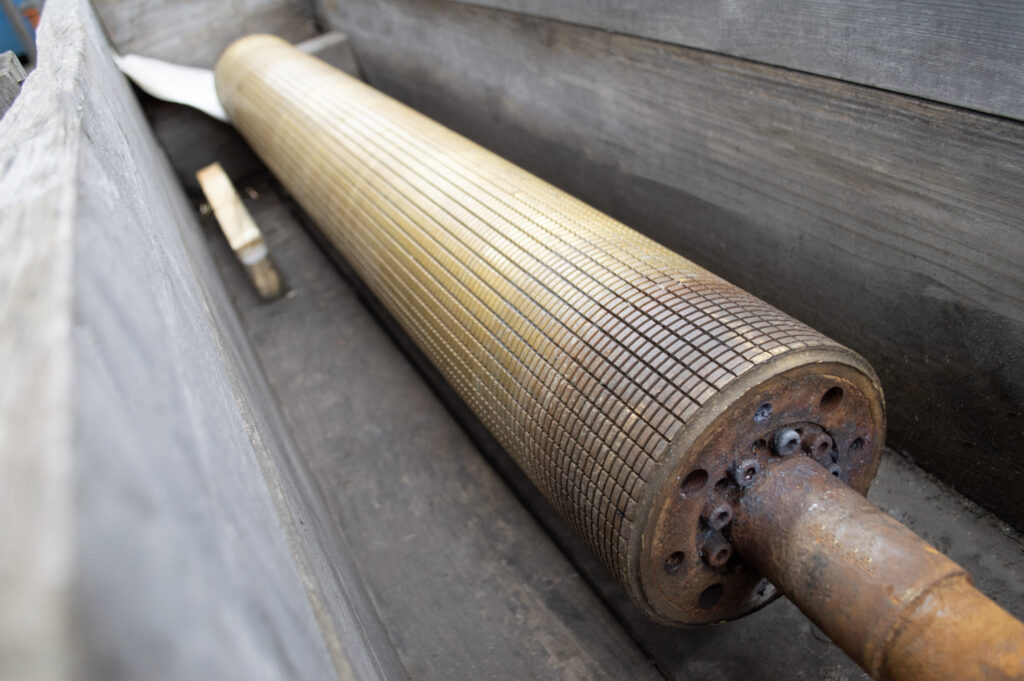

Maintain consistent performance and extend the life of your equipment with roll refurbishment services that restore critical surfaces and support stable, reliable production over time.
Because rolls influence how material behaves at multiple stages, their impact extends well beyond a single section of equipment.
Reichel & Drews rolls are manufactured to align with original equipment design, ensuring the geometry, surface condition, and alignment required for consistent material handling across the line.
Maintaining that consistency helps preserve stable operating conditions—from upstream material control through cutting and downstream handling.
