In shingle production, cutting cylinders and shingle knives are directly tied to what you see at the end of the line. When the cut looks clean and consistent, everything is working together the way it should. When it doesn’t, it usually points back to small changes in setup, wear, or alignment.
Most issues don’t come from one major failure. They build over time from small inconsistencies that are easy to overlook. Taking a step back and understanding where those come from can help keep the process more stable day to day.
If debris like granules or grit is left in the knife pockets, a knife may not sit completely flush. Even a small height difference can cause that knife to take on more impact during cutting, which is usually where chipping or edge damage begins.
A few simple checks during installation go a long way:
That small gap is important. Without it, stress builds between adjacent knives, especially where different profiles meet which can shorten knife life over time.
These are small details, but they set the baseline for how the cylinder is going to perform.

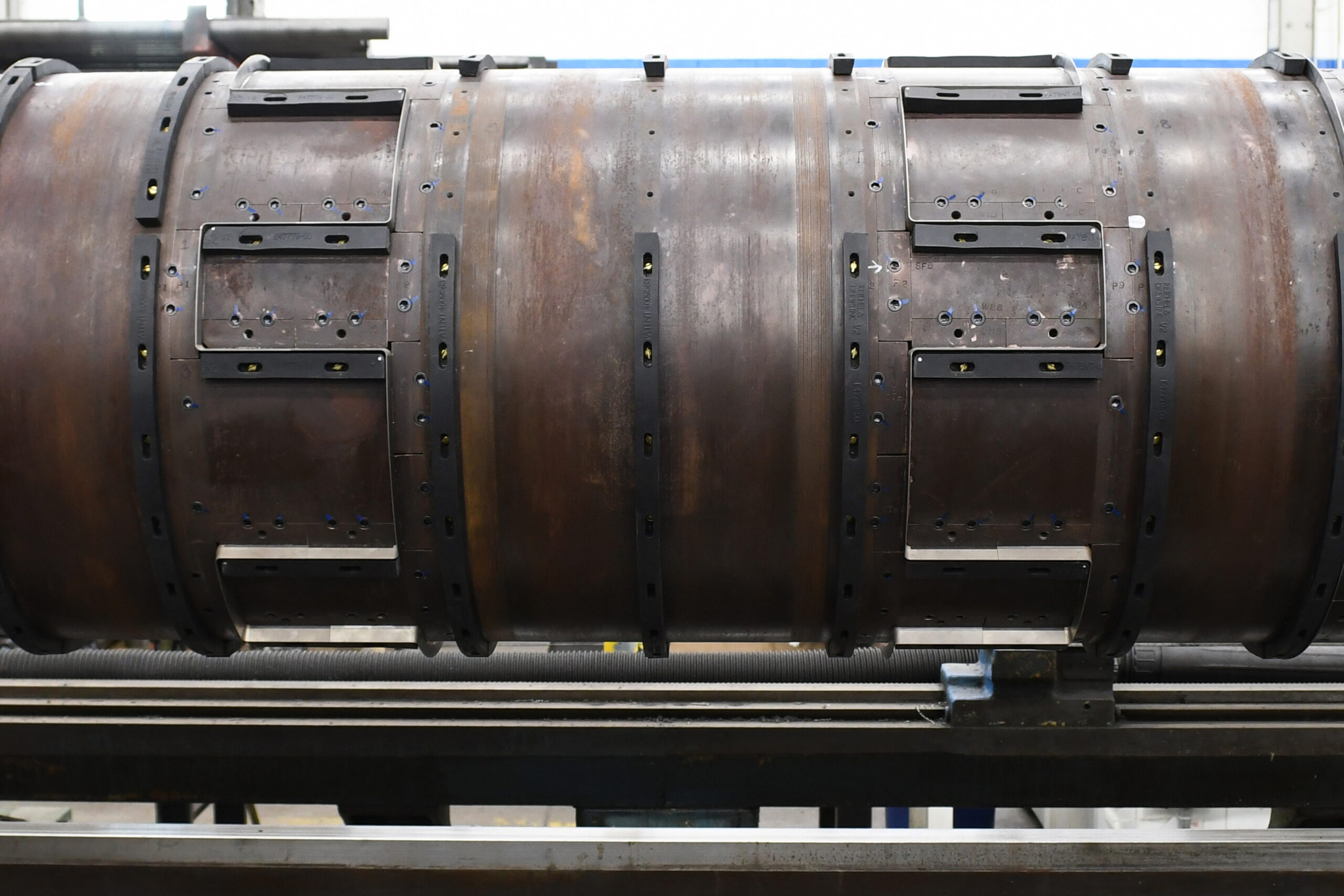

As the cutting cylinder is used, wear starts to show up. Especially in the knife seating areas. The challenge is that it doesn’t wear evenly.
Over time, grooves can develop where the knives sit. When new knives are installed into those worn seats, they don’t all line up at the same height. That’s when startups can feel inconsistent, and the cut may vary until everything “wears in.”
The problem with relying on that wear-in is that it comes at the expense of performance and knife life.
Instead, addressing worn seating surfaces ahead of time helps keep things consistent from the start. This might include:
When knives start at the same height, the cutting process is much smoother right away.
Even with proper installation, regularly rotating knives can help distribute wear more evenly. This simple step can extend life and maintain a more consistent cut over time.
Bumpers are one of those components that don’t always get much attention, but they have a direct impact on how material runs through the cutter.
They help maintain tension as the sheet moves through the cutting cylinder, which is what keeps shingle length consistent. They also help prevent material from sticking to the knives after the cut. This is something that can happen with warm, tacky asphalt.
Inconsistent bumpers typically show up through noticeable changes in the process, such as:
A common issue is mixing worn and new bumpers. The difference in height changes how the sheet contacts the cylinder, which can throw off both tension and tracking.
Keeping all bumpers at the same condition and height helps everything move through the cut more smoothly.
Even when the cutting cylinder is set up correctly, it still depends on the surrounding equipment to stay stable.
The carriage plays a big role in keeping everything aligned. If there’s wear in mating blocks, guideways, or adjustment systems, the cylinder can shift slightly during operation. When the carriage or supporting components begin to wear, that movement—sometimes noticed as vibration or “bouncing”—affects how consistently the knives engage.
Other areas to keep an eye on include:
Even small inconsistencies in these areas can show up in the cut over time.
When everything is aligned and supported properly, the process becomes much more stable.
Across all of this, it really comes back to consistency.
It’s not just about having sharp knives it’s about making sure everything around them supports a consistent cut:
When those pieces are in place, the line tends to run smoother, startups are more predictable, and components last longer.
