What Is Misalignment Really Costing Your Production Line?
What an Optical Alignment Survey Can Reveal
Across a roofing production line, rolls, shafts, frames, cutters, and material-handling systems must maintain precise positional relationships. When those relationships change, the effects can appear as tracking instability, excess wear, quality variation, or recurring troubleshooting efforts throughout the line.
By using an optical alignment survey to measure how equipment is positioned relative to established centerlines and reference points, manufacturers gain a clearer understanding of overall machine condition. The survey helps determine whether recurring symptoms are being influenced by mechanical alignment issues rather than process settings or individual component failures alone.
WHAT IS AN OPTICAL ALIGNMENT SURVEY?

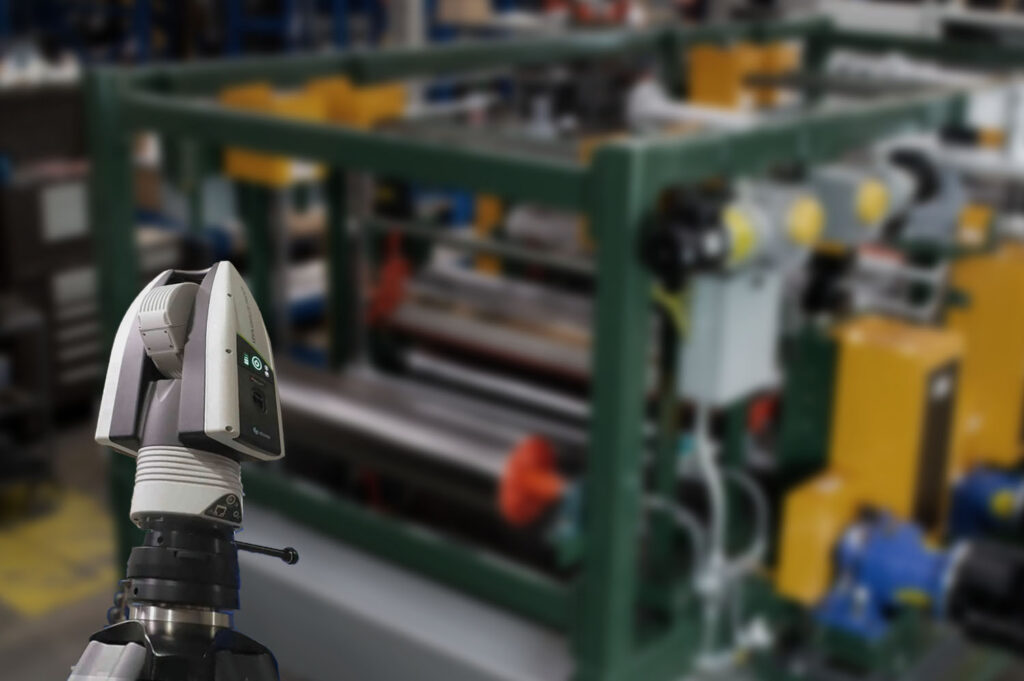

An optical alignment survey is the process of measuring and verifying machine geometry using highly accurate optical measurement systems. It determines whether machine components are positioned correctly in relation to the machine centerline and to one another.
Depending on the equipment being evaluated, alignment inspections may verify:
- Roll and shaft elevation
- Machine centerline position
- Parallelism between components
- Component squareness and perpendicularity
- Roll-to-roll and component-to-component relationships
- Frame position relative to established reference monuments
- Straightness of equipment centerlines
Overall machine geometry Unlike conventional measurement methods that typically evaluate shorter distances or individual components, optical alignment technology can assess machinery across entire machine sections and, in some cases, an entire production line. This allows manufacturers to identify small positional deviations that may not be visible during routine inspections.
Optical alignment is not intended to replace traditional troubleshooting. Instead, it helps determine whether underlying machine geometry is contributing to the problem being observed.
WHY ALIGNMENT MATTERS
Roofing materials move through multiple interconnected machine sections, often at high production speeds. Each roll, shaft, frame, and processing component influences how material enters the next stage of production.
When a component shifts from its intended position, operators often compensate by adjusting guides, tension settings, or process parameters. While those adjustments may temporarily improve performance, they do not provide confirmation that machine geometry remains within specification.
A line-wide alignment evaluation establishes a common reference for understanding how equipment is positioned throughout the process. Rather than treating each symptom as an isolated issue, manufacturers can evaluate whether machine geometry is influencing multiple areas of production.
TREAT THE CAUSE, NOT THE SYMPTOM
When the same problem returns despite maintenance efforts, component replacements, or process adjustments, evaluating machine geometry can help determine whether a positional deviation is driving the issue. Correcting the underlying condition often prevents the same symptoms from repeatedly resurfacing.
WHERE MISALIGNMENT COMMONLY APPEARS
While alignment issues can occur anywhere in a production line, certain machine sections can be more affected by misalignment than others. Understanding how misalignment manifests at different stages of the process can help narrow troubleshooting efforts and identify where further investigation may be necessary.
Creating this list early allows maintenance teams to evaluate options, confirm specifications, coordinate budgets, and prepare for the work ahead without the pressure of an approaching shutdown.
Dry Mat Loopers and Accumulators
In dry mat looper and accumulator applications, equipment position influences material tracking and component loading throughout the system.
When the substrate no longer follows its intended path through the accumulator, manufacturers may experience:
- Substrate wandering through the accumulator
- Tracking issues at system entry or exit
- Accelerated chain and sprocket wear
- Increased bearing wear
- Premature wear on guides and related components
Coater Sections
The coater section applies hot liquid asphalt to fiberglass mat as it passes through a series of rolls.
Roll position directly affects how material travels through the coating process and can contribute to:
- Web tracking instability
- Uneven asphalt distribution
- Variations in coating thickness
- Inconsistent product quality
- Increased process variability
Cooling Sections
Cooling sections use multiple chill rolls to cool and stabilize the product before it moves downstream.
When material contact across the cooling section becomes inconsistent, manufacturers may notice:
- Inconsistent product cooling
- Unstable web movement
- Uneven loading across chill rolls
- Accelerated component wear
- Reduced equipment life
Finish Loopers
Finish loopers provide temporary storage while finished material continues through downstream processes.
Because several moving components must work together, changes within the system can lead to:
- Product tracking irregularities
- Uneven wear across system components
- Reduced mechanical stability
- Increased maintenance requirements
- Difficulties during downstream handling
Roll Winding Systems
In roll winding applications, equipment position influences web entry, tension distribution, and how material builds across the finished roll.
When material does not enter the winder correctly, manufacturers may experience:
- Telescoping rolls
- Uneven roll tension
- Offset winding patterns
- Poor roll formation
- Finished rolls that are more difficult to handle
Evaluating the relationship between upstream rolls, tensioning components, and the winder can help identify the source of winding issues.
Cutters
Accurate cutting depends on both material position and machine geometry.
Material path variations may contribute to:
- Cut accuracy issues
- Product dimension variations
- Notch placement issues
- Product breakage
- Material tearing
Evaluating upstream machine geometry can help determine whether material path deviations are contributing to the issue.
Stackers and Downstream Handling Equipment
By the time product reaches the stacker, alignment-related conditions may have already passed through multiple machine sections.
Upstream issues can contribute to:
- Uneven stacks
- Recurring jams
- Inconsistent product presentation
- Excessive component wear
- Downstream handling challenges
Evaluating the complete material path can help determine whether these issues originate at the stacker or elsewhere on the line.
THE VALUE OF EVALUATING ALIGNMENT ON THE ENTIRE LINE
In some cases, where the cause of production issues are hard to pin down to individual components, it can be valuable to perform an optical alignment survey on the entire line. Machine geometry influences how material moves from one section of the line to the next. When a component shifts position, the resulting material path deviation can affect multiple downstream processes.
For example, an upstream web-handling issue may eventually affect how material enters a coater, cooling section, cutter, or winder. The location where the symptom becomes visible may not be where the condition originated.
A line-wide optical alignment survey establishes a common geometric reference across machine sections, helping maintenance and engineering teams distinguish localized component issues from broader machine geometry concerns.
PERFORMANCE ISSUES THAT MAY INDICATE THE NEED FOR ALIGNMENT EVALUTATION
Misalignment often reveals itself through recurring production, quality, or maintenance issues. When these symptoms persist despite normal maintenance and process adjustments, it may be time to evaluate machine geometry.
- Persistent tracking issues
- Poor cut quality or inconsistent notch placement
- Uneven coating application
- Inconsistent product cooling
- Telescoping or poorly formed rolls
- Recurring jams in downstream equipment
- Frequent operator adjustments required to maintain production
- Repeated bearing, chain, sprocket, guide, or other component wear
- Components repeatedly fail in the same location
- Persistent production or quality issues that remain after standard troubleshooting efforts
EVENTS THAT WARRANT AN ALIGNMENT REVIEW
Even well-performing equipment can benefit from alignment verification after major mechanical changes or disruptions. An alignment evaluation may be especially beneficial following:
- Major equipment installations
- Foundation repairs or structural modifications
- Significant component replacements
- Line relocations or rebuilds
- Equipment impacts or unexpected mechanical events
- Major shutdown work affecting machine position
- Before or after significant production capacity upgrades
- When establishing a baseline for future maintenance and troubleshooting
OPTICAL ALIGNMENT AS A PREVENTIVE MAINTENANCE STRATEGY
Many manufacturers investigate alignment only after production issues become difficult to ignore. However, optical alignment can also support a proactive maintenance strategy.
Periodic evaluations establish a baseline for machine geometry. In many cases, permanent reference monuments or benchmark points are installed as part of the alignment process, creating a repeatable reference system that can be used for future measurements. Future surveys can then be compared against the established baseline, allowing maintenance and engineering teams to identify changes in equipment position before they develop into larger production, reliability, or maintenance concerns.
Alignment data can also strengthen troubleshooting efforts. When equipment position is verified, teams can confidently focus on other potential causes. When a deviation is identified, they gain a measurable condition to investigate rather than relying on assumptions.
Over time, a documented reference system and alignment history can simplify future maintenance activities, support equipment rebuilds and modifications, and provide a consistent benchmark for evaluating machine condition.
ALIGNMENT DATA FOR BETTER MAINTENANCE DECISIONS
Optical alignment surveys help roofing manufacturers evaluate machine geometry across the production line and determine whether equipment positioning is affecting production performance.
When tracking issues, recurring wear, or quality concerns persist after routine adjustments, measuring machine geometry can reveal conditions that might otherwise go unnoticed.
By identifying positional deviations before they become larger operational issues, optical alignment surveys support better maintenance decisions, more accurate troubleshooting, and more consistent production performance. Rather than relying solely on symptoms, teams gain measurable data to evaluate the condition of the production line.
If you’re evaluating your roofing line and want to understand how alignment may be impacting performance, our team can help assess your operation and identify opportunities for improvement.
